Tein EDFC5 Controller Kit

By Tein

$1,115.00
SKU: EDK04-R6655

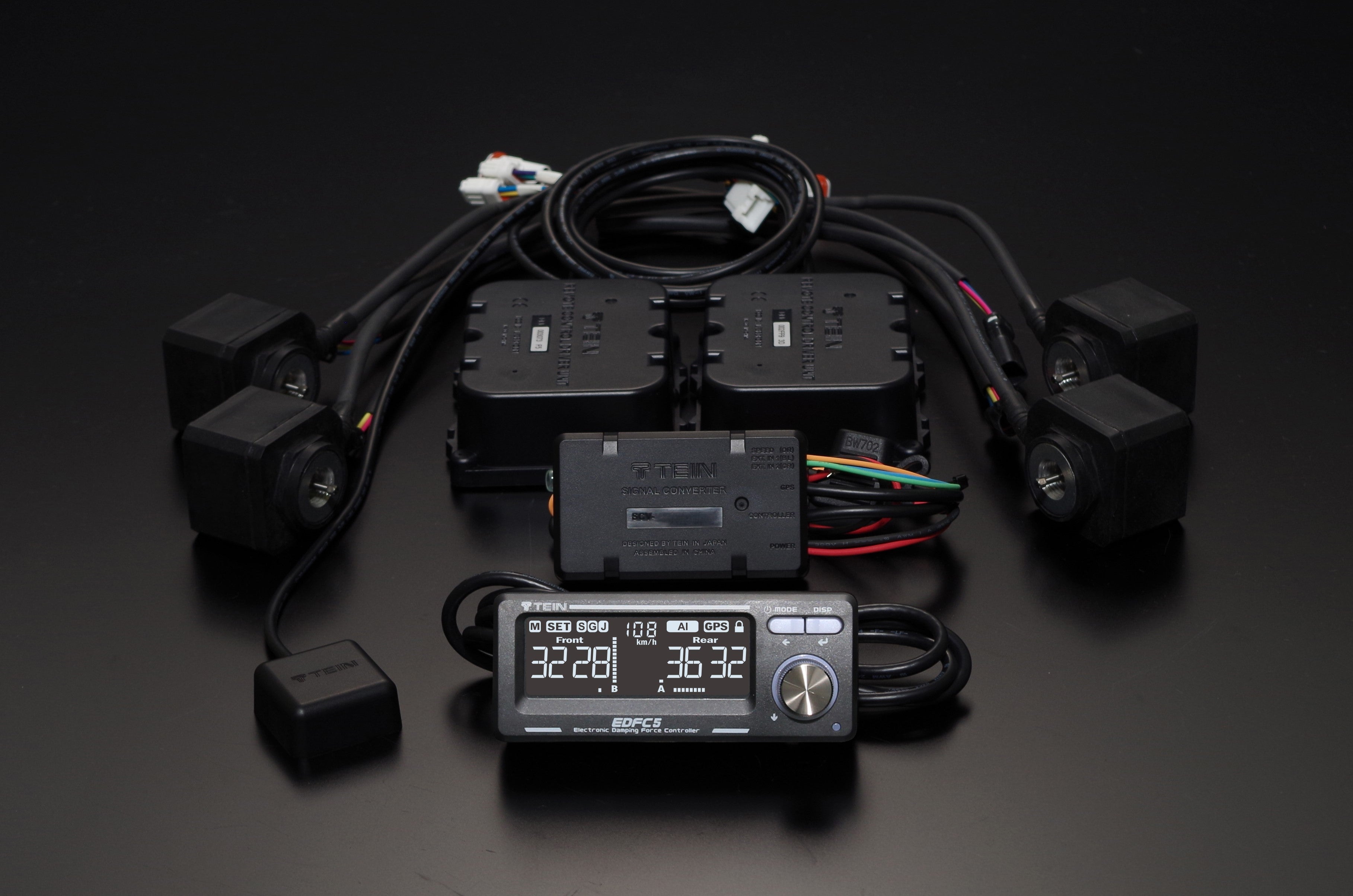

Tein EDFC5 Controller Kit

EDFC5 utilizes jerk-reactive adjustment feature, which is developed as a part of industry-academia collaboration with Prof. Dai Watanabe of Shibaura Institute of Technology, successfully combining both sharp handling and comfortable ride, to automatically provide most desirable driving behavior for all drivers. AI (learning function) helps to realize suitable driving feel, without sense of discomfort, for all sorts of situations. In addition, EDFC5 employs new approach to control motors to reduce operating sound, to maintain quietness like cars' original parts/components. Controller screen uses VA panel, as opposed to HTN panel that previous items use, for more beautiful and easy-to-read display.

Jerk-Reactive Adjustment

Through industry-academia collaboration with Prof. Watanabe of S.I.T., automatic control based on jerk (or jolt, surge, lurch) is made available.
By calculating jerk rate from changes in G-force detected, adjustment can be made automatically at the very moment when the cornering, acceleration or deceleration starts. This makes it possible to strike a good balance between sharp handling and comfortable ride. Patent Pending No.2022-188410

For example, the damping force is adjusted to emphasize on ride comfort when running straight forward but that would make the vehicle slow to react when the steering is turned. With jerk-reactive adjustment, the damping force is adjusted immediately after starting to steer, to make it most suitable for the upcoming curve and to provide sharp handling. After that, adjusting the damping force back to comfort-oriented setting can provide smoother ride and handling, absorbing bumpiness while cornering.

Tein EDFC5 Controller Kit
Tein EDFC5 Controller Kit

Damping force is adjusted automatically, based on lateral (cornering) jerk value. The system can be programmed as desired to suppress overshooting while in transition for early convergence, to improve cornering performance and to provide comfortable ride.

What is "jerk" ?
One of the most familiar examples would be an (old) elevator.
Imagine when you're going down to lower floors.
When an elevator starts to move, you get a little feeling of floating. When it stops, you feel bit heavier, pressed against the floor.
Those are the effects of higher vertical jerk, caused by quick acceleration/stop.

Longitudinal & Lateral G-Actuated Adjustments

Damping force is adjusted automatically, based on accel/deceleration and lateral (cornering) G-force.

Accel/Deceleration (Longitudinal) G-Actuated Adjustment

On the street you can unite ride comfort with handling stability, setting a soft damping force at constant speed to smoothly absorb the road's unevenness, and a stiff one at acceleration/deceleration to constrain vehicle movement.

Tein EDFC5 Controller Kit

Furthermore on circuits, setups allow for increased stability at braking, as well as under- and oversteer control by varying front-rear damping force balance depending on the accel/deceleration amount.

Cornering (Lateral) G-Actuated Adjustment

Automatic damping force adjustment, based on lateral G-force such as during cornering.
Want to combine a comfortable ride with smooth cornering? Just set damping force to be soft while driving straight to compensate surface flaws, and stiff only at turns, suppressing the vehicle's roll velocity.
You can pre-set the damping force to the amounts of the lateral G-forces, and also customize the balance between front and rear damping.

Tein EDFC5 Controller Kit

Understeer: front wheels skid sideways at fast bend

Oversteer: rear wheels skid sideways at fast bend

Understeer / Oversteer

Speed-Reactive Automatic Adjustment Mode

Automatic damping force adjustment, based on the vehicle's speed.
For example on urban streets, you can automatically have soft damping force at low speed for a cushioned ride, and stiff damping force for stable handling while driving fast.

Tein EDFC5 Controller Kit

Likewise on circuits, you can enjoy the right handling quality at any speed, for instance automatically adding a pinch of oversteer at sharp turns, and slight understeer at moderate turns.

AI (Learning Function)

The system learns driver's behavior and controls how jerk-reactive adjustment is made. Vehicle moves differently under different conditions; from highways, city streets, winding roads to racing tracks. AI works to determine and apply the most suitable adjustment patterns, eliminating sense of discomfort, for various driving situations.

Tein EDFC5 Controller Kit

Manual Mode

With just one dial, front and rear damping force levels can be adjusted as desired.
The preset memory function stores up to 10 setups. You can instantly switch to your preferred damping force levels for any situation.

Tein EDFC5 Controller Kit
Tein EDFC5 Controller Kit

Combined Control Mode

3 different adjustment modes; jerk-reactive (longitudinal/lateral), G-actuated (longitudinal/lateral) and speed-sensitive adjustments, can be combined for more comprehensive control, to provide superior ride quality.

Tein EDFC5 Controller Kit

Improved Quietness

EDFC5 allows to reduce motor operating sound to about 1/3 of the previous EDFC models, to maintain quietness level to that of OE parts/components. Driver unit employs new approach to reduce sound, so that existing motors can be used as-is.

Tein EDFC5 Controller Kit

Wireless Control

EDFC5 features wireless control, for easy installation and wiring.
The controller wirelessly communicates with the motor driver units that command EDFC motors. No more need to pierce cables through trunk or engine firewalls and snaking them about the vehicle.

Tein EDFC5 Controller Kit

The latest wireless technology enables instant and reliable adjustment motor response upon operating the controller unit. Of course, the network signal is reliable. Also interference is no worry, since each motor driver unit has one in 16.77 million unique IDs.
Motor driver units are made extremely dustproof and waterproof, so that they can be installed outside the vehicle's passenger compartment, such as in the engine bay.

Selectable Precision

Damping force adjustment levels can be set in 4 different types; 16-level, 32-level, 64-level or 96-level. To most TEIN damping force adjustable dampers which come with 16-level adjustment, use of EDFC5 adds 32-level, 64-level and 96-level adjustment capabilities within the same range for finer adjustments especially in automatic adjustment modes.

Tein EDFC5 Controller Kit

LCD Screen with Better Visibility

Controller screen uses VA panel, as opposed to HTN panel that previous items use, for more beautiful and easy-to-read display.

Tein EDFC5 Controller Kit

262K Display Color Options

You can adjust the color of the display, button and dial illumination. In addition to 4 default colors (white, green, amber and blue), the EDFC5 offers a spectrum of 262,000 colors to customize your controller unit.

Other Features

Controller Unit

A variety of features, such as a G-sensor and wireless communication, are combined into one compact unit. The wide display (22 x 60 mm) offers good visibility.

Tein EDFC5 Controller Kit

A wiring duct at the back lets you neatly route the cables, offering more flexibility to install the EDFC controller where you want.

  • Wiring Duct

    Wiring Duct

Automatic Brightness Adjustment

The brightness of the screen, buttons and dial adjusts automatically to the surroundings. Detecting the ambient light intensity with a sensor, EDFC5 does not need to connect to the vehicle's illumination signal.
You can set the basic light level manually (3 levels), and brightness auto-adjustment fine-tunes it for optimal visibility. The auto-adjustment function can be switched on/off.

Tein EDFC5 Controller Kit

Two Input Ports for External Signals

With just a simple external trigger, such as a touch or action, preset damper settings can be activated. This requires connecting the controller to an existing signal or separately purchased switch (2 ports available).
For example: connect to parking brake signal for instant damping force adjustment when you're drifting

  • Using a universal switch

    Using a universal switch (not included)

  • Connect to parking brake signal

    Connect to parking brake signal

Tein EDFC5 Controller Kit

Starting Point for G-Actuated & Jerk-Reactive Adjustments

Minimum speed at which G-actuated and/or jerk-reactive adjustments start working can be set between 0 to 50km/h (or 0 to 50MPH), so the adjustments would not work when the vehicle is running slower than the set speed.

One-Dial Operation

For easy operation, EDFC5 features a one-dial system. Intuitive and simple, the dial is turned to scroll, and pushed to confirm. The 2 buttons above it switch the mode and display.

Triaxial Accelerometer

Since the G-sensor contained in the controller unit works along 3 axes, the controller can be installed at just about any angle.

2 View Angles

The controller's display settings offer an alternative view angle, to ensure visibility.

Sound Volume Adjustment (Levels 0 to 3)

The volume of the button/dial push sound can be set between levels 0 (mute) and 3. This also applies to the volume of system signals during auto-adjustment.

Lock Function Disables User Input

EDFC5 offers a lock function to disable the buttons and dial, for instance during driving. This prevents accidental operations.

Self-Diagnosis

The system boasts a self-diagnosis feature that can determine the performance of motor driver units, wireless communication, etc. Any problem will appear on the screen, such as a disconnected or short-circuited motor driver unit, or trouble with the wireless signal.

Superior Casing Material

The housing of the motor driver units is made of highly heat resistant material.

Comp./Rebound Separate Damping Force Adjustment

EDFC5 is able to control up to 8 motors for individual damping force adjustment, with just the one controller unit. This requires additional motor driver units.
The controller unit displays compression and rebound damping force levels simultaneously, and it can adjust each separately. All functions of EDFC5 are available, including automatic adjustment modes.

Tein EDFC5 Controller Kit

When installing EDFC5 with shock absorbers that offer compression and rebound separate adjustment, the following items are required.

  • EDFC5 Controller Kit x 1
  • Motor Kit x 2
  • Motor Driver Unit x 2
    NOT compatible with motor driver unit for EDFC Active Pro (EDC01-P7370).
    Be sure to use the one for EDFC5 (EDC01-R6654). Not doing so would lead to damages.
  • Power Supply Cable for Front x 1
  • Power Supply Cable for Rear x 1
  • Motor Cable x as needed
  • EDFC Hex Bolt x 4
  • GPS Kit x 1 (for Speed-Reactive Automatic Adjustment Mode and GPS data display)
  • Strut Kit x 1 (recommended for strut type front suspensions)

Please use in conjunction with EDFC5's instruction manual

Price List

EDFC5 requires a Controller Kit and an EDFC Motor Kit.

Tein EDFC5 Controller Kit

A GPS Kit is required if the speed pulse cannot be taken from the vehicle, or if you want all functions to work.

Tein EDFC5 Controller Kit

A Strut Kit or a Motor Extension Kit may be needed depending on the vehicle model.

Tein EDFC5 Controller Kit
Required Kits
Item Part No. RRP
incl.GST
Remarks
Controller Kit
EDFC5 Controller Kit
EDK04-R6655 AUD 1,220.00
EDFC Motor Kit
Tein EDFC5 Controller Kit
EDK05-10100
EDK05-10120
EDK05-10140
EDK05-12120
EDK05-12140
EDK05-14140
AUD 270.00 The matching Motor Kit depends on the vehicle model and shock absorber type.
Optional Items
Item Part No. RRP
incl.GST
Remarks
GPS Kit
Tein EDFC5 Controller Kit
EDK07-P8022 AUD 140.00 Needed if the speed pulse cannot be taken from the vehicle, or if you want all functions to work.
Strut Kit
Tein EDFC5 Controller Kit
EDK06-K4474 AUD 65.00

Prevents wiring from entangling with the EDFC motors when the ride height is adjusted.

Motor Extension Kit
Tein EDFC5 Controller Kit
EDK08-P8514-10
EDK08-P8514-12
EDK08-P8514-14
AUD 120.00

If there's not enough space for adjustment motors, this kit makes it possible to install them regardless.

Contains a specially developed 'flexible shaft' that allows fitting the EDFC motor a little away from the shock absorber.

Piston Rod Top Extension Kit
Tein EDFC5 Controller Kit
Made to Order AUD 110.00

For vehicles in which extension of the piston rod tops ensures enough space around them for the EDFC motors. Produced upon your order. Can also be used in combination with the Motor Extension Kit.

Additional Items
Item Part No. RRP
incl.GST
Remarks
Motor Driver Unit
Tein EDFC5 Controller Kit
EDC01-R6654 Ask

Price is per piece.

One motor driver unit controls 2 adjustment motors.

Do NOT use with EDFC Active or EDFC Active Pro controller unit, as doing so would lead to damages.

Power Cable for Motor Driver Unit
Tein EDFC5 Controller Kit
Vehicle Front
(2 m)
EDC01-P8024
Ask

Price is per piece.

Each additional motor driver unit needs 1 power cable. Front or rear cable applies depending on the location of the motor driver unit.

Vehicle Rear
(5 m)
EDC01-P8025
EDFC Motor Cable
Tein EDFC5 Controller Kit
EDC01-P8026 Ask

Price is per piece.

For additional motors, or for replacement if a cable is damaged or too short. Over a short distance, motor driver unit and adjustment motor can be connected without an additional cable.

EDFC Hex Bolt
Tein EDFC5 Controller Kit
SAP44-P8463 Ask

Price is per piece.

Sold in a set of 4.

Each additional adjustment motor needs 1 EDFC Hex Bolt.

*Discontinued and only available while supplies last.

EDFC Motor
Tein EDFC5 Controller Kit
M10:
EDC01-K1466-1
M12:
EDC01-K1466-2
M14:
EDC01-K1466-3
Ask Comes with a rubber cover.
8mm Spanner
Tein EDFC5 Controller Kit
SST01-F11262 Ask







Additional Items
Item Part No. RRP
incl.GST
Remarks
Motor Driver Unit
Tein EDFC5 Controller Kit
EDC01-R6654 Ask

Price is per piece.

One motor driver unit controls 2 adjustment motors.

Do NOT use with EDFC Active or EDFC Active Pro controller unit, as doing so would lead to damages.

Power Cable for Motor Driver Unit
Tein EDFC5 Controller Kit
Vehicle Front
(2 m)
EDC01-P8024
Ask

Price is per piece.

Each additional motor driver unit needs 1 power cable. Front or rear cable applies depending on the location of the motor driver unit.

Vehicle Rear
(5 m)
EDC01-P8025
EDFC Motor Cable
Tein EDFC5 Controller Kit
EDC01-P8026 Ask

Price is per piece.

For additional motors, or for replacement if a cable is damaged or too short. Over a short distance, motor driver unit and adjustment motor can be connected without an additional cable.

EDFC Hex Bolt
Tein EDFC5 Controller Kit
SAP44-P8463 Ask

Price is per piece.

Sold in a set of 4.

Each additional adjustment motor needs 1 EDFC Hex Bolt.

*Discontinued and only available while supplies last.

EDFC Motor
Tein EDFC5 Controller Kit
M10:
EDC01-K1466-1
M12:
EDC01-K1466-2
M14:
EDC01-K1466-3
Ask Comes with a rubber cover.
8mm Spanner
Tein EDFC5 Controller Kit
SST01-F11262 Ask

EDFC Series - Overview of Specifications and Functions

Tein EDFC5 Controller Kit
